5G Cell Search

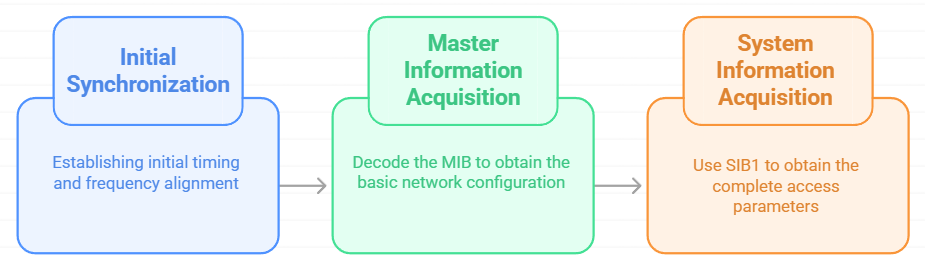

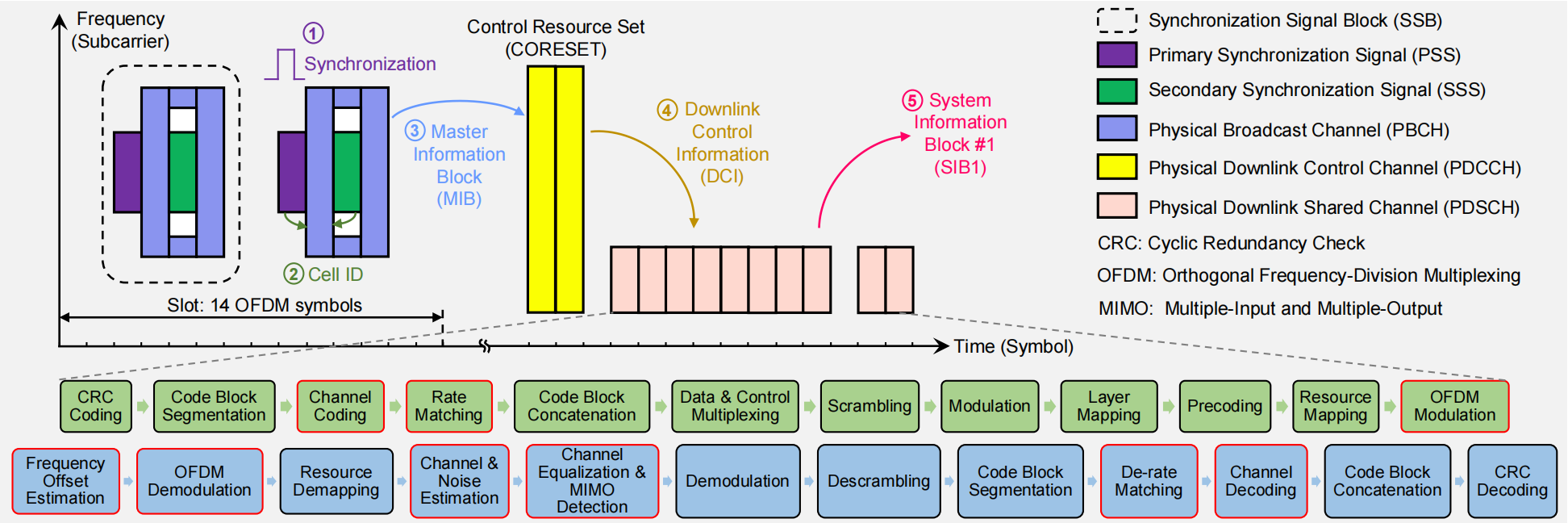

The Multi-Stage Access Process of Contemporary Wireless Communication

1. Initial Synchronization

Purpose:
  ⭕ First critical step in random access procedure.
  ⭕ Establishes basic alignment between UE and network.
  ⭕ Enables subsequent access operations.

PSS Detection (Primary Synchronization)

• Main Functions:
  • Achieves symbol-level timing synchronization, determining the start position of each OFDM symbol.
  • Provides a preliminary reference for frequency alignment.
• Implementation:
  • The UE matches the received signal with three locally stored standard PSS sequences.
  • Identifies symbol boundaries by finding the position with the strongest signal correlation.
  • Detection accuracy can reach ±0.5 microseconds.



SSS Detection (Secondary Synchronization)

• Main Functions:
  • Completes frame synchronization, determining the boundaries of 10ms radio frames.
  • Identifies the cell group number and, together with PSS, determines the Physical Cell Identifier (PCI) :

• Implementation:
  • Detects the SSS signal based on PSS synchronization.
  • Determines cell group information by matching 336 possible SSS sequences.



Frequency Compensation (Key Addition)

• Need for Compensation:
  • Device movement or hardware differences can cause frequency offset in the received signal.
  • Uncompensated frequency offset severely impacts signal demodulation quality.
• Compensation Methods:
  • Coarse Compensation Phase:
    • Estimates large-range frequency offset using the cyclic prefix characteristics of the PSS signal.
    • Compensates for typical frequency offsets (±1kHz to ±20kHz).
  • Fine Compensation Phase:
    • Performs precise adjustments using reference signals (DMRS) in the PBCH.
    • Controls residual frequency offset to within ±300Hz (for 15kHz subcarrier spacing).
• Special Scenario Handling:
  • Enables Doppler shift prediction algorithms during high-speed movement.
  • Uses dynamic tracking mechanisms to adapt to continuous frequency offset changes.



⚠️Notes:
  ● The entire synchronization process is typically completed within 20-40ms, a critical factor in ensuring 5G’s low-latency performance.
  ● In poor channel conditions, the system activates repeated detection mechanisms to ensure reliability.

2. Master Information Acquisition

Objective: Decode MIB to obtain basic network configuration.

Signal Processing Chain

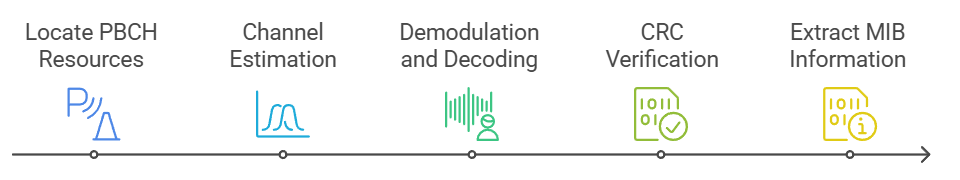

  a. The UE locates the time-frequency resources of the Physical Broadcast Channel (PBCH) through the synchronized SSB (Synchronization Signal Block).
  b. It performs channel estimation using the DM-RS (Demodulation Reference Signals) within PBCH and compensates for wireless channel effects through frequency-domain equalization techniques.
  c. The QPSK-modulated PBCH data undergoes demodulation and rate dematching, with coded bits being recovered through Polar Decoding.
  d. CRC verification is performed on the decoded data to extract critical MIB information including system frame number, subcarrier spacing, and CORESET#0 configuration.

⛳️Key Parameters:
  ● CORESET0 Location
  ● SSB Periodicity
  ● System Bandwidth

⚠️Notes:
  ● The entire process must be completed within an 80ms time window while maintaining robust processing capabilities against frequency-selective fading and phase noise.
  ● PBCH employs a 20ms retransmission mechanism to enhance decoding reliability.

3. Sysyem Information Acquisition

Objective: Obtain complete access parameters via SIB1.

Signal Processing Chain

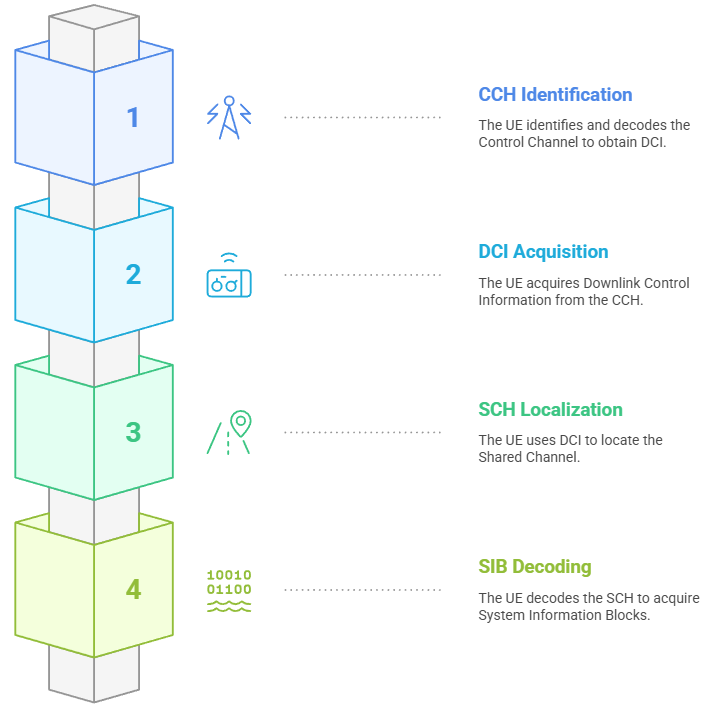

  The 5G NR access procedure follows a strict sequence where Control Channel (CCH) identification must precede Shared Channel (SCH) localization. The UE first decodes the CCH to obtain Downlink Control Information (DCI), which contains the necessary scheduling parameters. Using this DCI, the UE then locates and decodes the SCH to acquire System Information Blocks (SIBs). This sequential approach ensures efficient and reliable network access by maintaining proper synchronization between control and data plane operations.

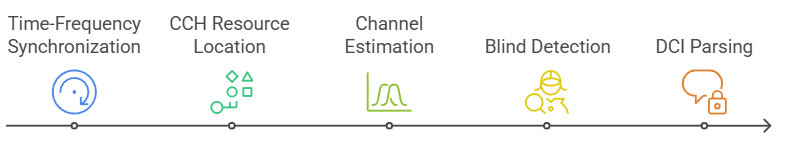

• Identification of Control Channel (CCH)
    a. After achieving time-frequency synchronization through synchronization signals, the UE determines the physical resource location of CCH based on CORESET configuration information obtained from BCH decoding.
    b. Channel estimation is performed using DM-RS reference signals to calculate the channel response matrix, and equalization algorithms such as MMSE are applied to eliminate multipath interference.
    d. Blind detection is conducted on candidate PDCCHs, where operations including demodulation, descrambling, and CRC verification are performed to identify valid DCI formats from multiple candidate aggregation levels.
    d. The DCI content containing critical information such as scheduling grants is parsed. The entire process must be completed within millisecond-level time constraints while maintaining robust processing capabilities against frequency offsets and phase noise.

• Localization of Shared Channel (SCH)

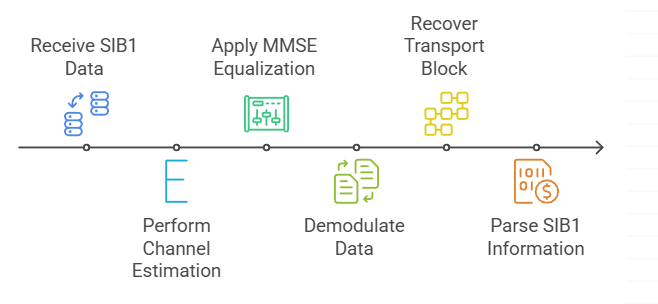

    a. Based on the time-frequency resource location indicated by the DCI, the UE receives SIB1 data on the PDSCH and performs channel estimation and MMSE equalization using DM-RS.
    b. The QPSK/16QAM-modulated data is then demodulated, and the transport block is recovered through LDPC decoding.
    c. The UE parses the cell access parameters and other SIB scheduling information contained in SIB1.


⚠️Notes:
  ● The entire process must comply with the 160ms periodicity constraint and supports HARQ retransmission mechanisms to ensure reliability.
  ● SIB1 transmission adopts a combined fixed-period and window-based mechanism to facilitate efficient system information acquisition by the UE.
