DSL User Guide

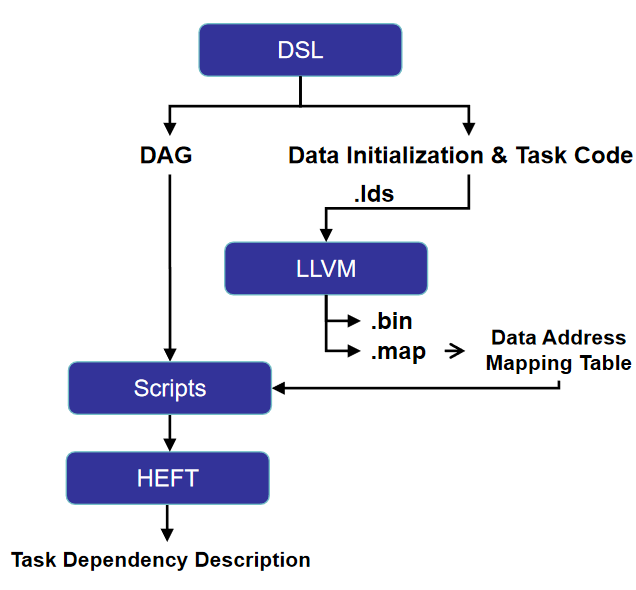

BAS describes a directed acyclic graph: nodes invoke tasks, and edges carry returned data to later tasks. The release bundles a revision-pinned DSL frontend and uses an external Venus-custom LLVM installation for task compilation.

A graph from the bundled smoke

return_value short sum[32]
return_value short restored[32]

The sample initializes two vectors, a and b, with 32 signed 16-bit elements each, then connects its two tasks:

dag dag1 = {
  [sum] = Task_forgeAdd(a, b)
  [restored] = Task_forgeRestore(sum, b)
}
END

These are excerpts. Use the complete BAS file with its parameter arrays and matching task sources.

Declarations and dependencies

Use ASCII punctuation and the keyword dfedata (not dfe_data). The declaration examples and complete type reference below show the accepted forms.

Compile for the configured Venus1 backend

Run from platform/ after setup:

./ace-echo --config .ace-echo/host/local.toml compile dag \
  --target forge_vector_smoke --backend .ace-echo/host/backend.json

Compilation uses a run-local frontend copy. The generated JSON, combined BIN and task images are collected in the run artifacts. Use those recorded paths for later simulation. Configure host paths through .ace-echo/host-tools.json; do not copy another developer’s absolute LLVM_PATH or mix lane/row settings manually.

Allocation size and transferred data

An output declaration’s allocation capacity can exceed the data returned at runtime. For Venus1 ordinary task dependencies, RTL transport uses the producer’s runtime return byte count through the 16-bit DMT length field. The platform follows that behavior; a receiver’s declared capacity is advisory and does not silently shorten the transfer. Above 65535 bytes, the 16-bit field truncation must be considered.

This does not make an overlapping live memory region safe. See the transfer-length contract and optional external BAS parameters for precise behavior.

Data-type reference

These types describe the DSL’s data representation. The Venus1 vector arithmetic backend supports 8-bit and 16-bit elements; declaring a float array does not create a floating-point Venus1 vector instruction.

A BAS scalar parameter is conventionally represented by a one-element array, such as parameter short mode = {15}. Match the generated task interface: some task signatures use a 64-byte-aligned short_struct, rather than a raw C short argument. Array element count and ABI container size are separate.

Declaration syntax with examples

Static parameter

parameter char bits = {1,0,1,1,0,0,1,0}
parameter short samples = {-3,-1,1,3}
parameter short mode = {15}

parameter TYPE NAME = {VALUES} embeds initialization data. Its element count comes from the initializer. Use decimal numeric literals, ASCII commas and no trailing comma. Put a minus sign before a negative literal. A declaration has no terminating semicolon.

Application and digital-front-end inputs

dag_input short nCellid[1]
dfedata char iq[4420]

dag_input TYPE NAME[CAPACITY] declares input from the application; dfedata TYPE NAME[CAPACITY] denotes digital-front-end input in the BAS convention. These declare storage and bindings, not sample values. Supply their runtime data through a matching launcher/input contract. Preserve the input order recorded in generated metadata rather than assuming declaration order.

Graph returns

return_value short subFrameNum[1]
return_value char decoded[256]

The variable must be produced by a task call in the graph. The brackets reserve capacity in elements. They do not force the task to return that many bytes. For instance, decoded[256] may hold a shorter payload whose length is determined by vreturn.

Globals

global short mode = 1

The frontend also accepts global TYPE NAME and an integer initializer form. Globals have different allocation/lifetime behavior from task results. For ordinary standalone examples, prefer a parameter or a task-produced value; use the global form when reproducing an application designed around it.

Names, comments and line endings

' This whole line is a comment.
parameter short gain = {2} ' This is an end-of-line comment.

Names begin with a letter or underscore, followed by letters, digits or underscores. Avoid language keywords such as data as identifiers. The lexer treats ' through the end of the line as a comment. Both whole-line and inline comments are accepted; a leading apostrophe comments out the declaration itself. Use a final newline after END.

Task calls and dependency bindings

dag dag1 = {
    [sum] = Task_forgeAdd(a, b)
    [restored] = Task_forgeRestore(sum, b)
}
END

The function name selects the task. The right-hand argument list follows its C task signature; the left-hand list follows its ordered vreturn(buffer, bytes, ...) pairs. Reusing a produced name in another task creates a data dependency. Intermediate names are introduced by task results and need not all be graph returns.

A task with multiple outputs uses the following syntax pattern:

dag dag1 = {
    [payload, status] = Task_decode(samples, mode)
    [result] = Task_consume(payload, status)
}
END

Here Task_decode / Task_consume are illustrative names; supply matching task sources before compiling. Do not duplicate dag dag1 as the old quick-start example did.

The parser also accepts pointer forms and SPMD pragmas used by other backend configurations. The Venus1 manifest does not qualify pointer input descriptors or SPMD task-container fields. Start with ordinary value dependencies on Venus1; syntax acceptance alone does not select hardware support.

Complete working example

The Venus User Guide includes both C files and the entire forge_vector_smoke.bas, including all 32-element inputs. Its expected outputs are sum[i]=15-i and restored[i]=i-16. Unlike a syntax sketch, it corresponds to a bundled compilation target and reference assets.

Compiler configuration reference

The original low-level configuration reference remains useful when diagnosing a build. ACE-Echo 1.0 generates the run-local values from the selected host and backend; use the setup commands in Get started to select them together.

Compiler and optimization flags

Use the exact generated command line from a successful run when debugging. The original checkout’s config.mk contains defaults for several historical configurations, including different lane counts and address maps. Copying that file wholesale is not equivalent to selecting Venus1. Atomic-extension flags and additional passes can also differ between compiler/backend revisions.

Generated artifacts and troubleshooting

The older direct DSL layout used final_output/<dag>.json, bin/<dag>.bin and venus_test/ir/<task>.hex. In the platform, use the paths recorded under the run artifacts; their exact nesting can differ from the original checkout.

External parameter files

To vary inputs without editing the task graph, place values in a separate file:

parameter short gain = {3}

For a target that actually references gain, compile with:

./ace-echo --config .ace-echo/host/local.toml compile dag \
  --target YOUR_DAG --params /path/to/case.params \
  --backend .ace-echo/host/backend.json

External values override matching static parameters; their type must agree. Explicit --params takes precedence over a dag-source.json default. Runtime inputs keep their dag_input / dfedata declarations, and their launcher must use the generated input contract. See external parameter details for supported literal ranges, complete runtime-input requirements and initialization behavior.

The source references for this guide are the lexer, parser, build configuration and Venus1 backend.
